A Network Switch is a computer networking device that connects devices together on a computer network, by using a form of packet switching to forward data to the destination device. A network switch is considered more advanced than a (repeater) hub because a switch will only forward a message to one or multiple devices that need to receive it, rather than broadcasting the same message out of each of its ports.

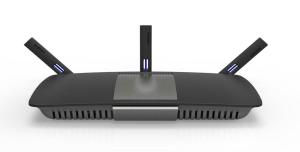

A router is a networking device that forwards data packets between computer networks. A router is connected to two or more data lines from different networks. When a data packet comes in one of the lines, the router reads the address information in the packet to determine its ultimate destination. Then, using information in its routing table or routing policy, it directs the packet to the next network on its journey. This creates an overlay inter-network. Routers perform the “traffic directing” functions on the Internet. A data packet is typically forwarded from one router to another through the networks that constitute the inter-network until it reaches its destination node.
Home & Small Office routers comes with ADSL ports where your cable/DSL connection will terminate in router.
The most familiar type of routers are home and small office routers that simply pass data, such as web pages, email, IM, and videos between the home computers and the Internet. An example of a router would be the owner’s cable or DSL router, which connects to the Internet through an ISP. More sophisticated routers, such as enterprise routers, connect large business or ISP networks up to the powerful core routers that forward data at high speed along the optical fiber lines of the Internet.
Firewall is a network security system that controls the incoming and outgoing network traffic based on an applied rule set. A firewall establishes a barrier between a trusted, secure internal network and another network (e.g., the Internet) that is assumed not to be secure and trusted.
|Patch cord||Information Outlet||Patch Panel|
Optic Fiber Cable
Suitable For Indoor & Outdoor Networking. Offers excellent protection from moisture, Light Weight, Water Resistance.
- Single mode
- SC ,LC, SC connectors
- Fiber enclosure
Fiber Optic Connector:
Fiber pigtails which are single ended with connectors. Full standard optical specifications, precise length & tolerances. Pigtail assemblies give the quality, confidence & convenience to be installed & spliced in the field.
Wall Mount Racks
Wall Mount Racks designed for small Networking, Domestic Application, Audio Video, Telecom and Lab Applications. Racks are fabricated out of CRCA steel, CNC programmed, punched, bended, welded and Powder coated with highest quality standards. Racks are welded frame integrated with side panels and vented top cover with fan mounting provision, while front glass with lock & key provides the visibility & security, rear side of the Rack is provided with the wall mounting slots for your equipment.
- 4 U
- 6 U
- 9 U
- 12 U
Floor Standing Steel Racks designed for Servers, Networking, Data Centers, Audio Video, Telecom and Lab applications. Racks are fabricated out of CRCA steel, CNC programmed, punched, bended, welded and Powder coated with highest quality standards. Configuration for standard racks are welded frame with 4 pillars of 7 Fold profile welded to top and bottom panels. 4 Fold profile depth rails to additionally support the rack. Removable side panels partially vented for better air circulation. Openings/Cut outs for field cable entry from Top & Bottom of the Rack. Vented top cover with fan mounting provision, Front Glass or perforated Metal door with lock and key. Back Vented or perforated metal door with lock and key. Free Floor standing Design with 4 No. castor wheels, 2 no’s with breaks and 2 no’s without breaks.
- 27 U
- 36 U
- 42 U
Cable Organizer frame manufactured out of steel sheet punched, formed, welded and powder coated, doors made of aluminum sheet punched, formed and powder coated with highest quality standards to ensure best quality product. Standard configuration will be 8” & 12” with unique double hinge door on Front & Back associated. Removable / Reusable fingers made of Poly carbonate material. Available in Front or Front Back Variants.
